Description
Model:TSGA1100 Driving type :DC
Rated Voltage:36V Rated Power:250W
Current w/o loading:0.7±0.2A Speed w/o loading : 263±20rpm
Rated Torque :8N.m Max Torque: ≥20N.m
Rated Current: 8A Rated efficiency : 85%
Rated speed: 238±20rpm Limited current : 15A
Open size :75mm Insulation Grade:B
Pole no. :16 Noise : <55dB
Weight :1.8Kg Spoke Specification:28H/13G
Wheel Size(Inch) :12/14/16/20

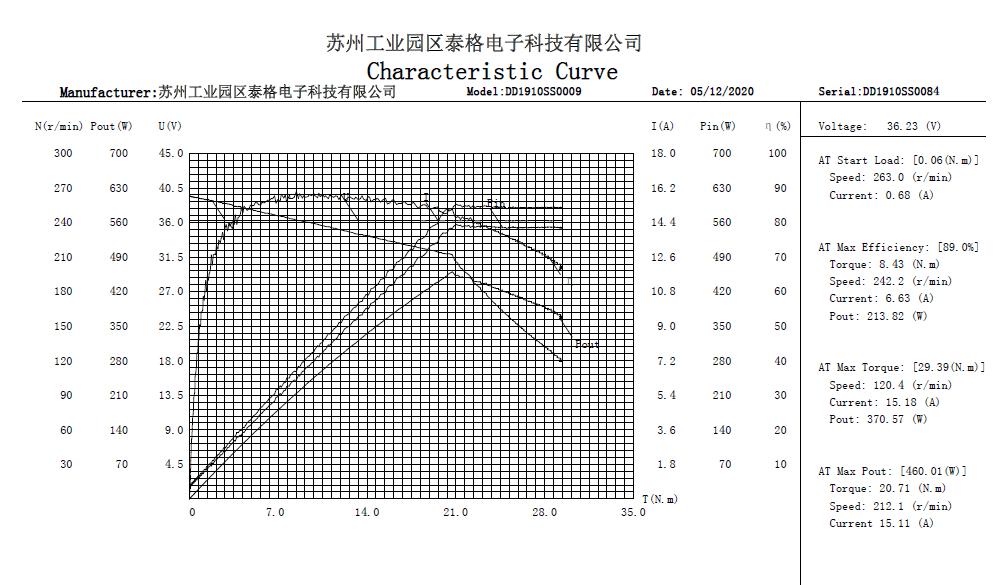

TEST DATA:
