Description
The PMSM(permanent magnet synchronous motor) uses rare earth permanent magnets to maintain high magnetic density, with our high efficiency motor controller, it can reach high torque and high efficiency in low speed, suitable to drive large industrial HVLS fans up to diameter 7.3M, gear box is not needed anymore.

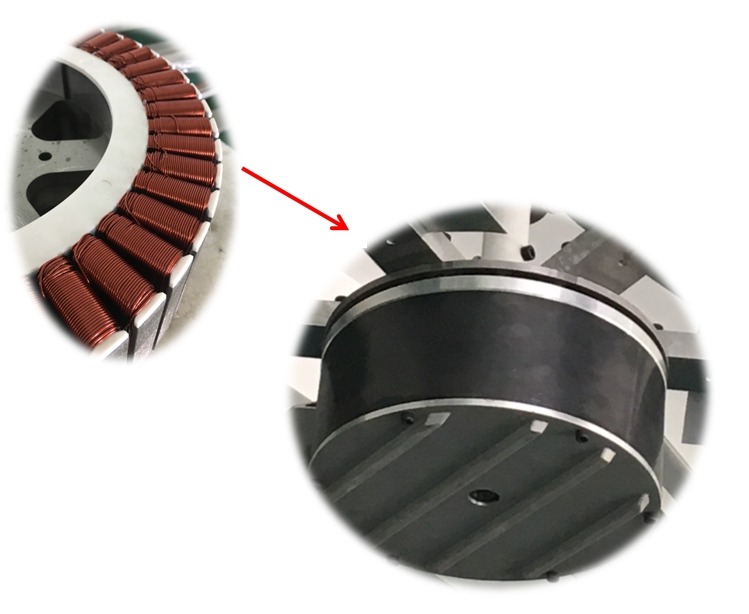

The coil of the motor is winded by auto-winding machine developed by ourselves, the motor is high efficiency with compact size, performance is stable.
| Voltage | Motor model | Motor Power(W) | RPM | Current | G.W（KG） |
|
220V 380V |
M300 | 1500 | 0-100 | 14.2 | 35 |
| 1100 | 0-100 | 10.4 | 35 | ||
| 1100 | 0-80 | 10.4 | 35 | ||
| M198 | 550 | 0-80 | 5.2 | 30 | |
| 550 | 0-80 | 5.2 | 30 | ||
| 350 | 0-75 | 3.3 | 30 | ||
| 350 | 0-75 | 3.3 | 30 | ||
| M147 | 200 | 0-75 | 1.9 | 26 | |
| 180 | 0-100 | 1.7 | 26 | ||
| 100 | 0-110 | 0.9 | 26 |
Advantage
1、High Efficiency: up to 85%
2、Energy saving: 30% saving
3、Simple structure, compact size, reliable and high efficiency;
